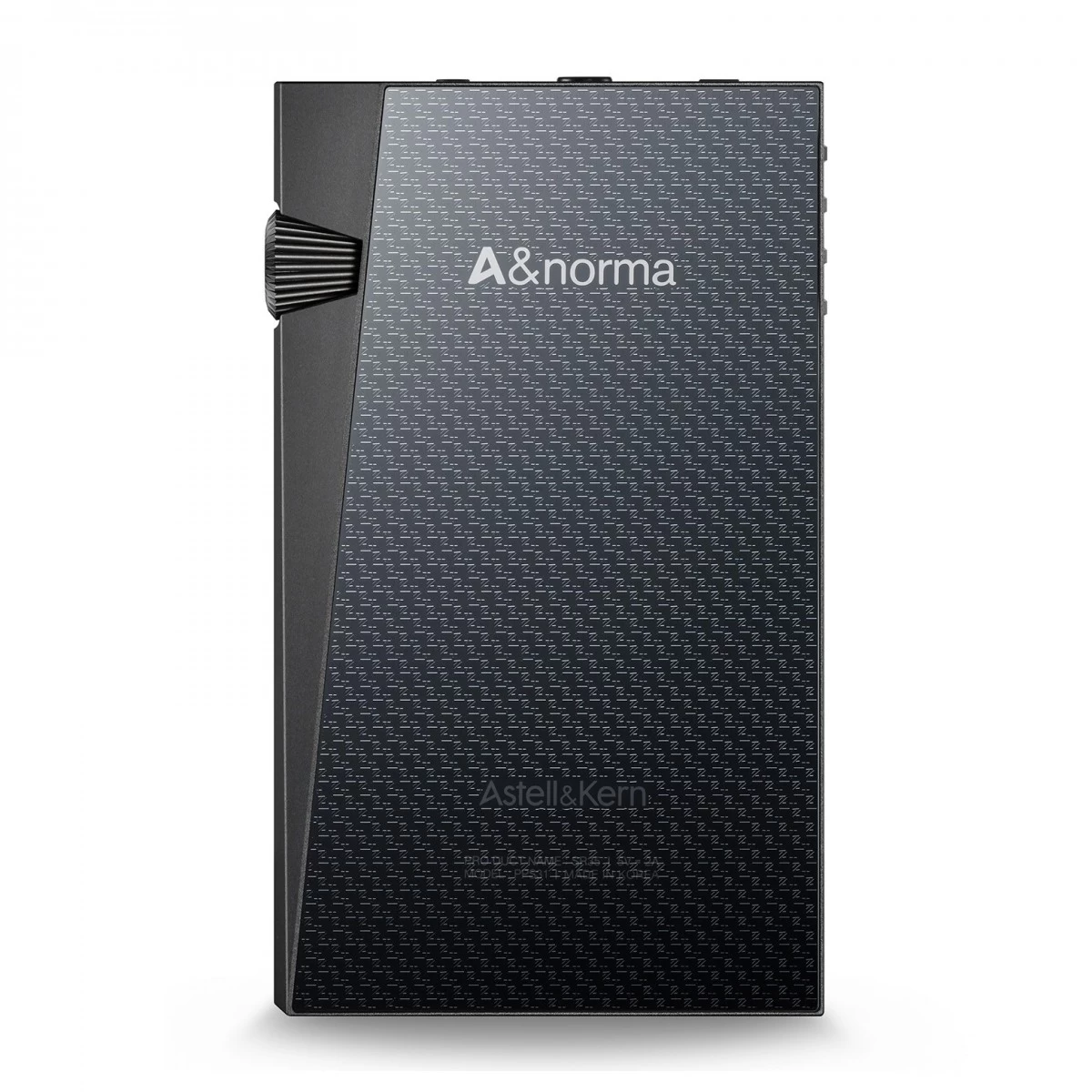

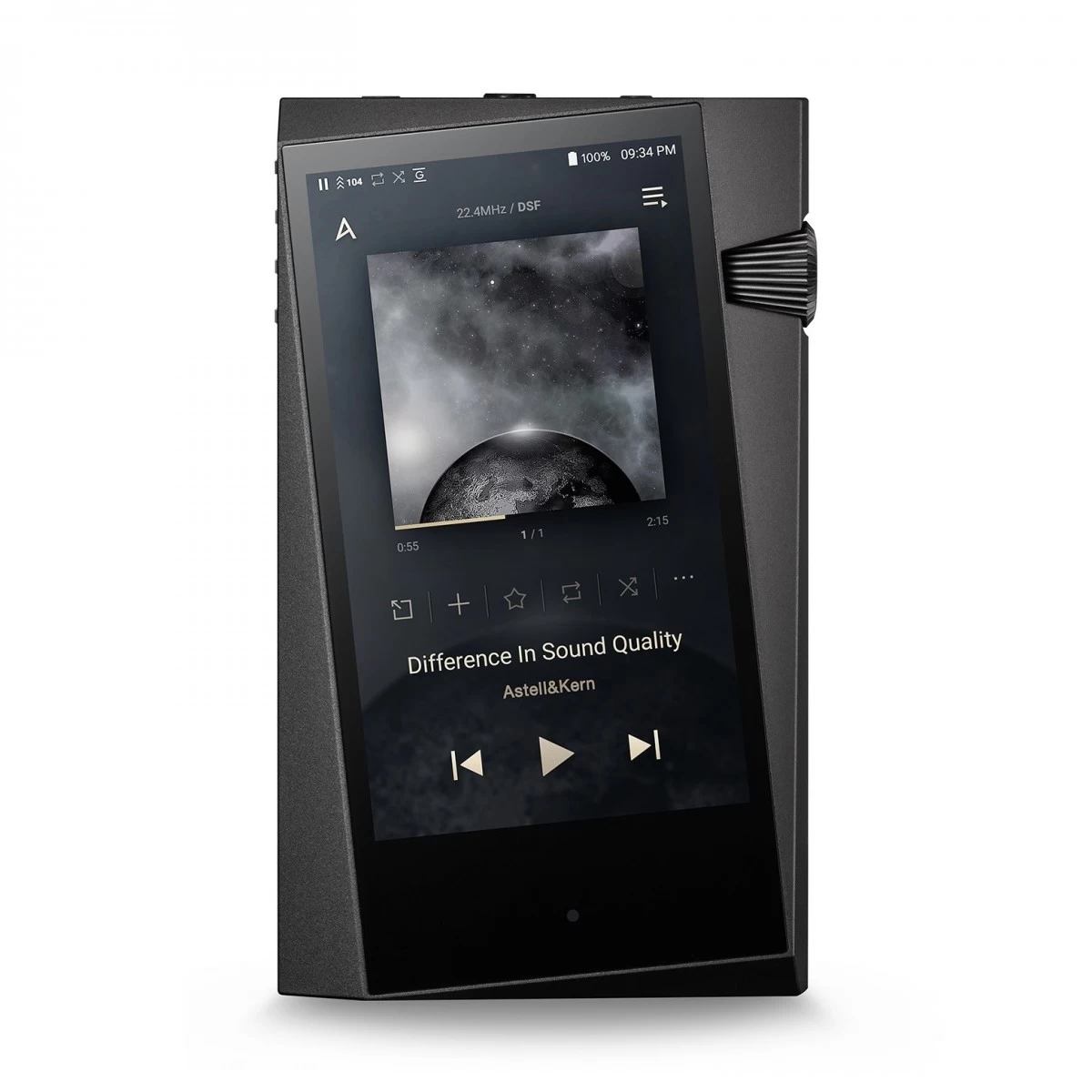

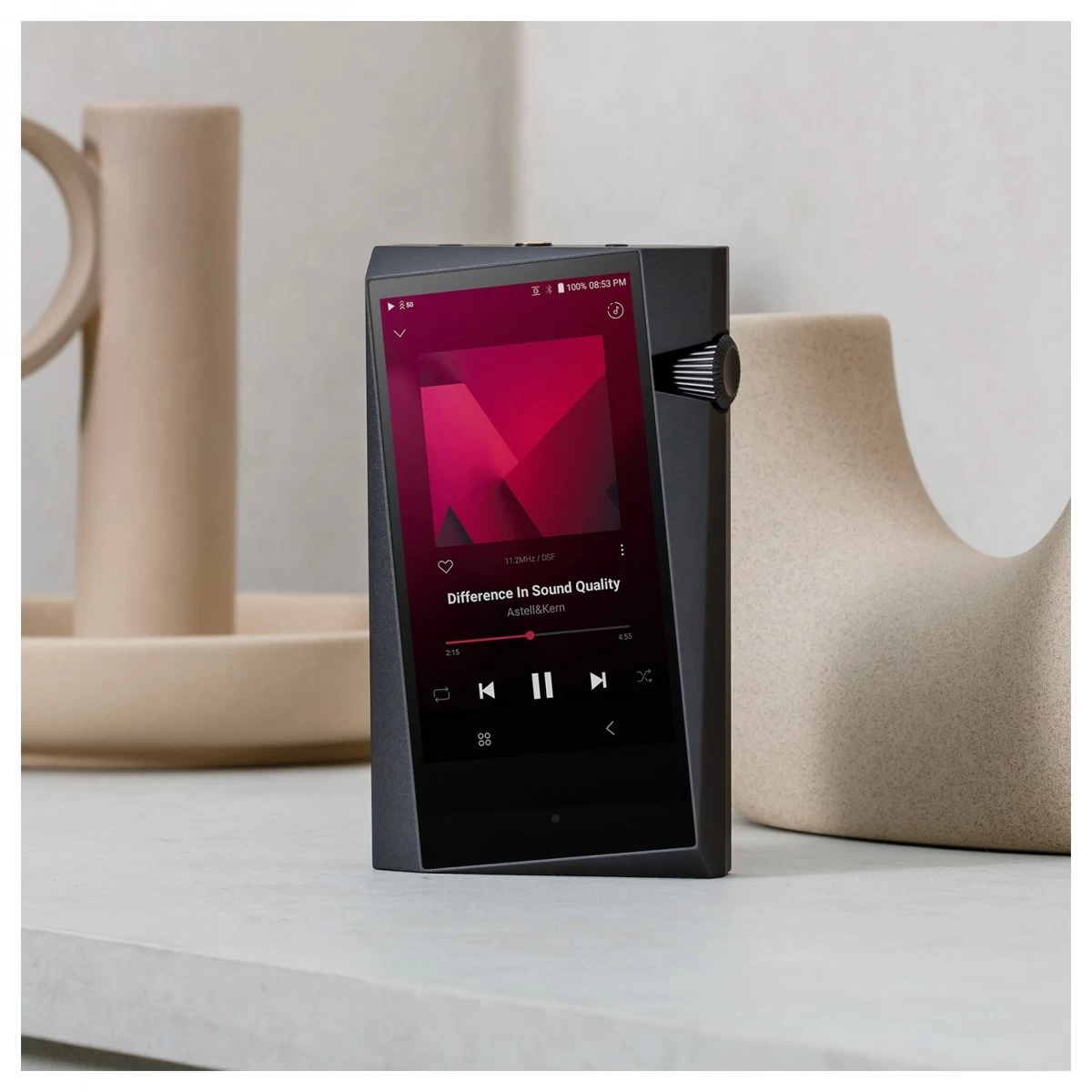

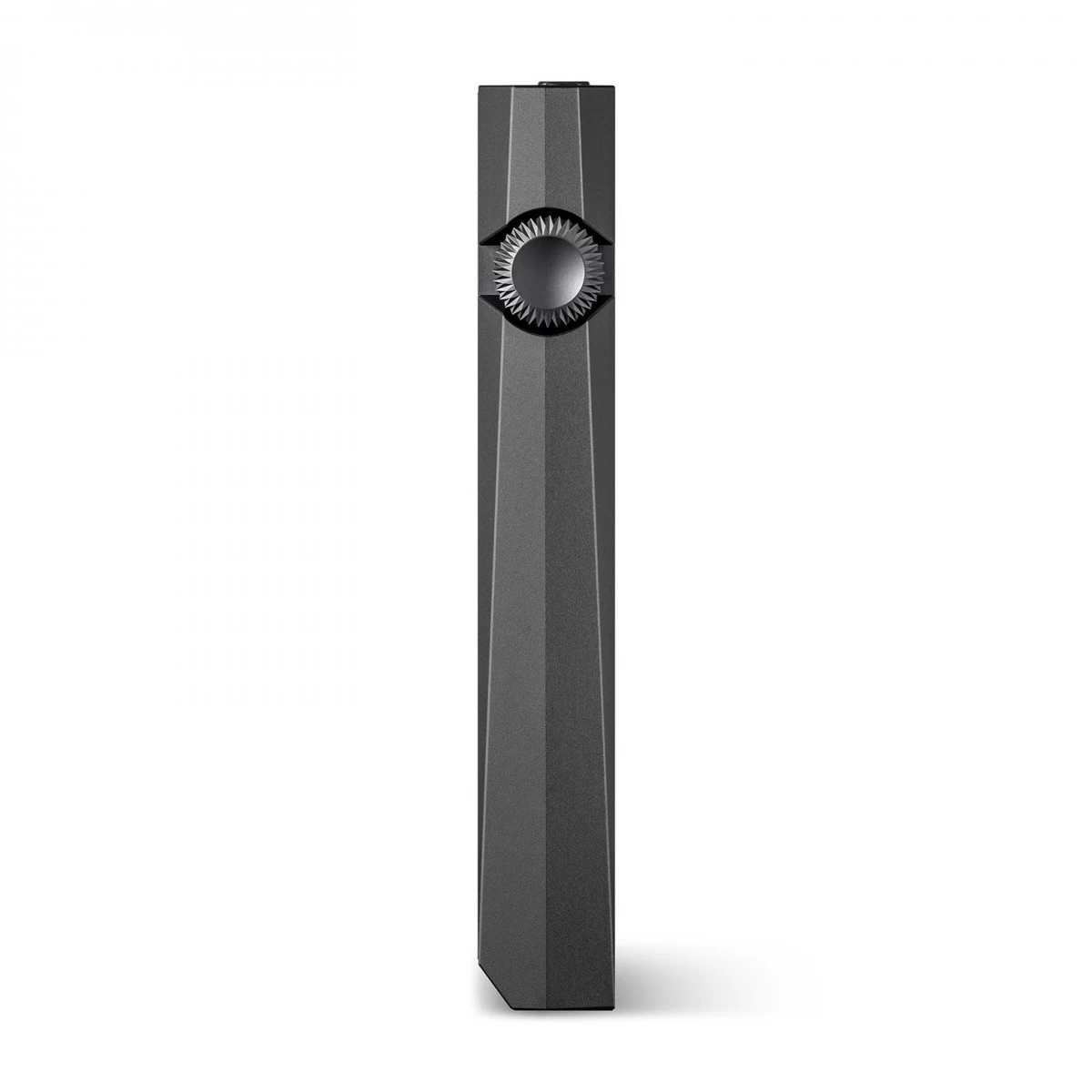

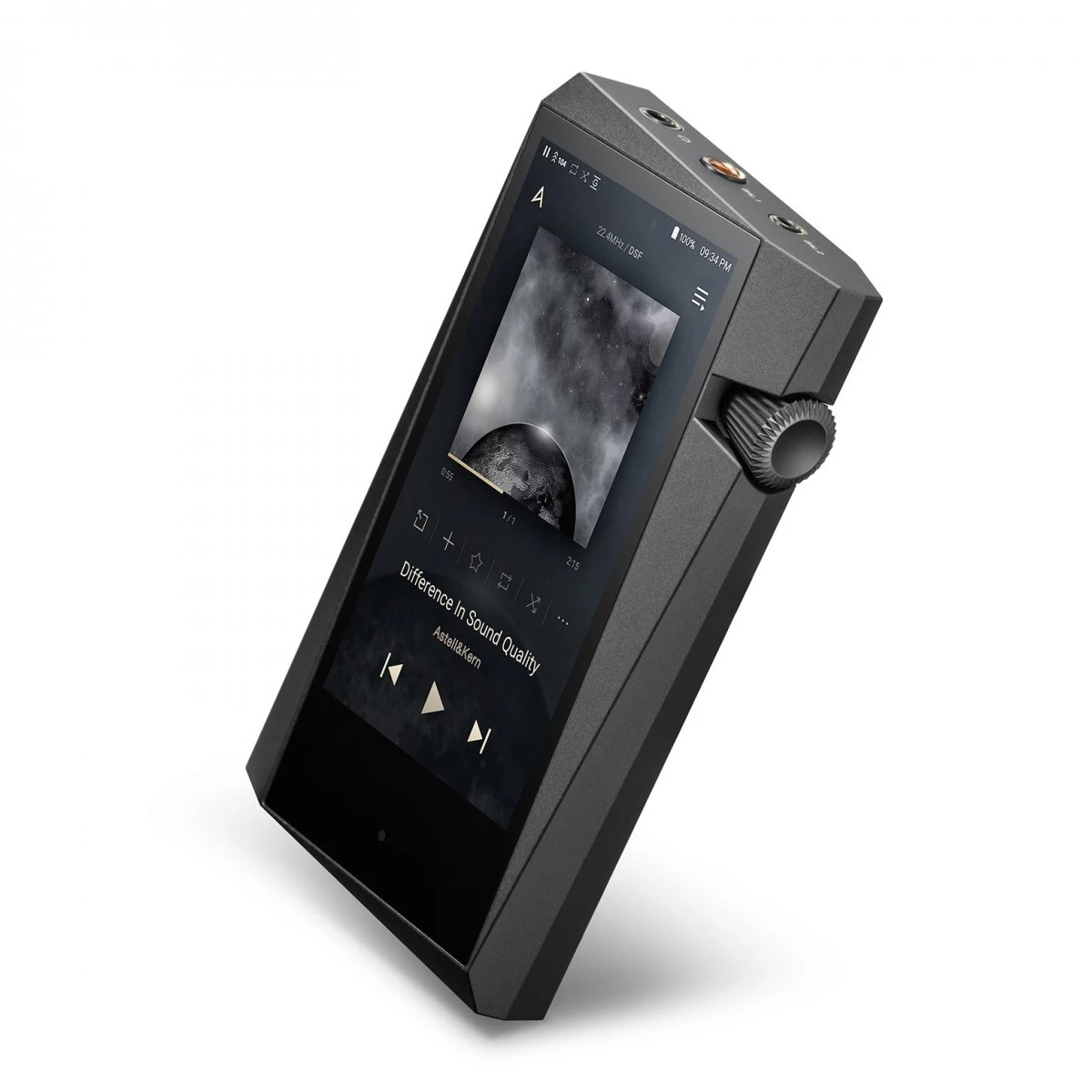

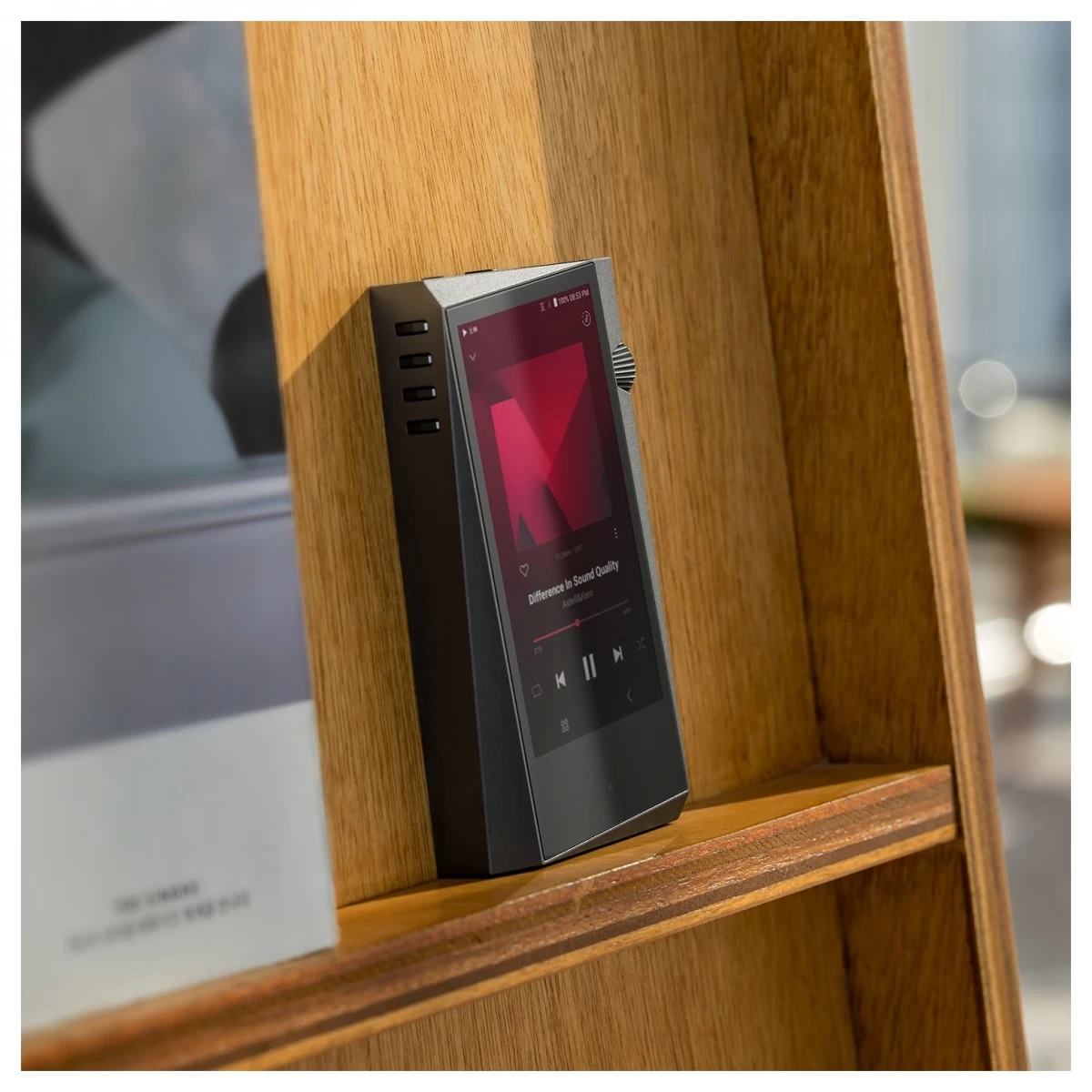

Astell&Kern A&norma SR35 Digital Audio Player W/ Grey Case

Key Features

• New generation AMP technology advances noise reduction at a high power output to improve the sound
• TERATON ALPHA technology optimises SR35’s internal circuitry to transmit the best sound possible
• Four Cirrus Logic CS43198 chips enable the Dual/Quad switching mode, ensuring great power efficiency
• Supports PCM files up to 384kHz/32bit and DSDNative up to DSD256 to ensure a pristine sound
• 2-Step Gain Mode allows you to adjust the amplification level to cater to different types of headphones
• Provides multiple connectivity options to unbalanced/balance headphones and headphone amps
• ReplayGain alters the volume to a level that suits your songs
• Dual-band Wi-Fi offers an array of music streaming options
• Bluetooth LDAC allows you to wirelessly connect the SR35 to your headphones
• BT Sink lets you stream the music on smart devices from the SR35
• MQA support refines the sound so you can hear your music the way the musician originally intended
• Stylish UI/UX design ensures you can navigate your way through your music library with ease

Package Includes

Astell&Kern A&norma SR35 Digital Audio Player Specifications

General

Model	SR35
Body Color	Charcoal Gray
Body	Material Aluminum
Display	3.6inch HD 720 x 1280 touch screen
Supported Audio Formats	WAV FLAC WMA MP3 OGG APE AAC ALAC AIFF DFF DSF
Sample rate	PCM : 8kHz 384kHz (8/16/24/32bits per Sample) DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo
Output Level	[Normal] Unbalanced 2.1Vrms,Balanced 4Vrms (Condition No Load) [High] Unbalanced 3.1Vrms, Balanced 6Vrms (Condition No Load)
CPU	Quad-core
DAC	Ciruss Logic CS43198 x4 (Quad-DAC)
Decoding	Support up to 32bit / 384kHz Bit to Bit playback

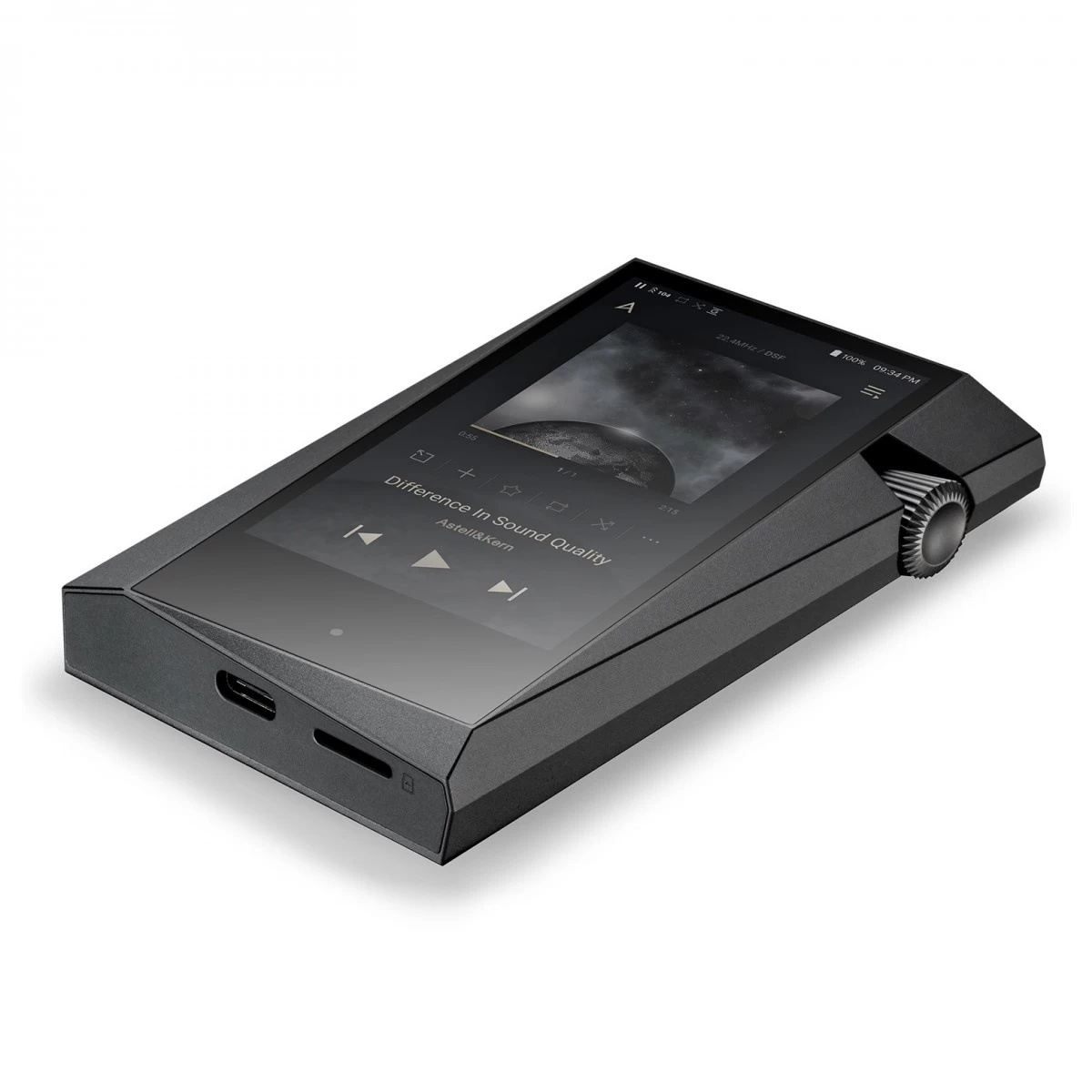

Input	USB Type-C input (for charging & PC & MAC)

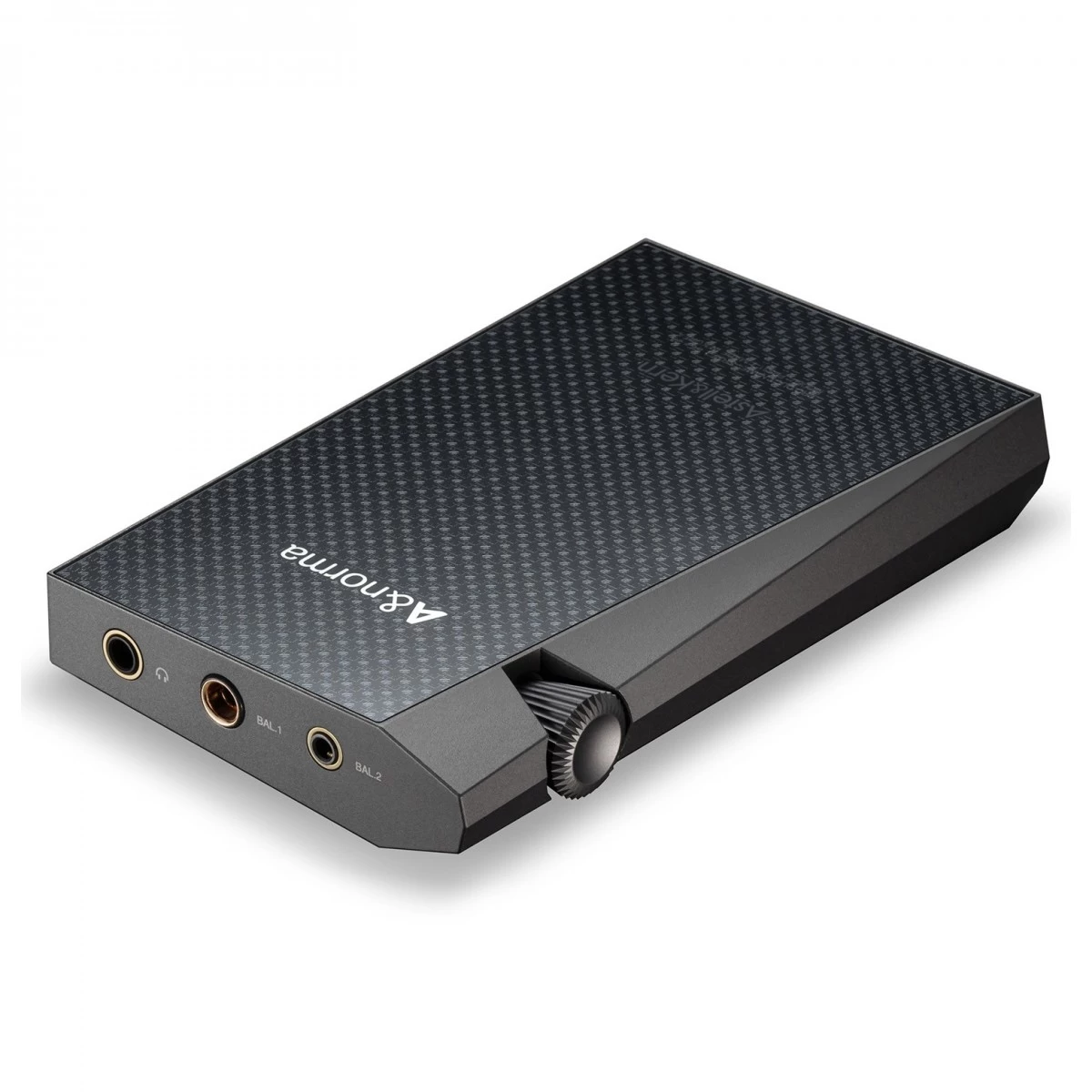

Outputs	Unbalanced Out (3.5mm), Balanced Out (2.5mm, only 4-pole supported | 4.4m, only 5-pole supported)
Wi-Fi	802.11 a/b/g/n/ac (2.4&5GHz)
Bluetooth	V5.0 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC)
Dimensions	64mm[W] x 108.3mm[H] x 16.1mm[D]
Weight	about 184g
Feature Enhancements	Firmware upgrade supported (OTA)
Operating Temperature	0? – + 40? (32?-104?)

Audio

Frequency Response	±0.012dB (Condition: 20Hz 20kHz) Unbalanced, ±0.011dB (Condition : 20Hz 20kHz) Balanced ±0.125dB (Condition : 20Hz 70kHz) Unbalanced,±0.126dB (Condition : 20Hz 70kHz) Balanced
S/N	127dB @ 1kHz, Unbalanced, 130dB @ 1kHz, Balanced
Crosstalk	-133dB @ 1kHz, Unbalanced, -145dB @ 1kHz, Balanced
THD+N	0.0005 @ 1kHz, Unbalanced 0.0006 @ 1kHz, Balanced
IMD SMPTE	0.0002 800Hz 10kHz (4:1) Unbalanced 0.0002 800Hz 10kHz (4:1) Balanced
Output Impedance	Unbalanced Out 3.5mm (1.1ohm) Balanced Out 2.5mm, 4.4mm (2.7ohm)

Clock Source

Clock Jitter	25pS (Typ)
Reference Clock Jitter	70ps

Storage Capacity

Built-in Memory	64GB [NAND]
External Memory	Micro SD x1 (Max. 1TB)

Battery

Capacity	3,150mAh 3.7V Li-Polymer
Charge Time	about 2.5hours (5V 2A General Charging)
Playback Time	about 20 hours (Standard: FLAC, 16bit, 44.1kHz, Normal Gain, Unbalanced, Vol.50, LCD Off, Dual DAC Mode)

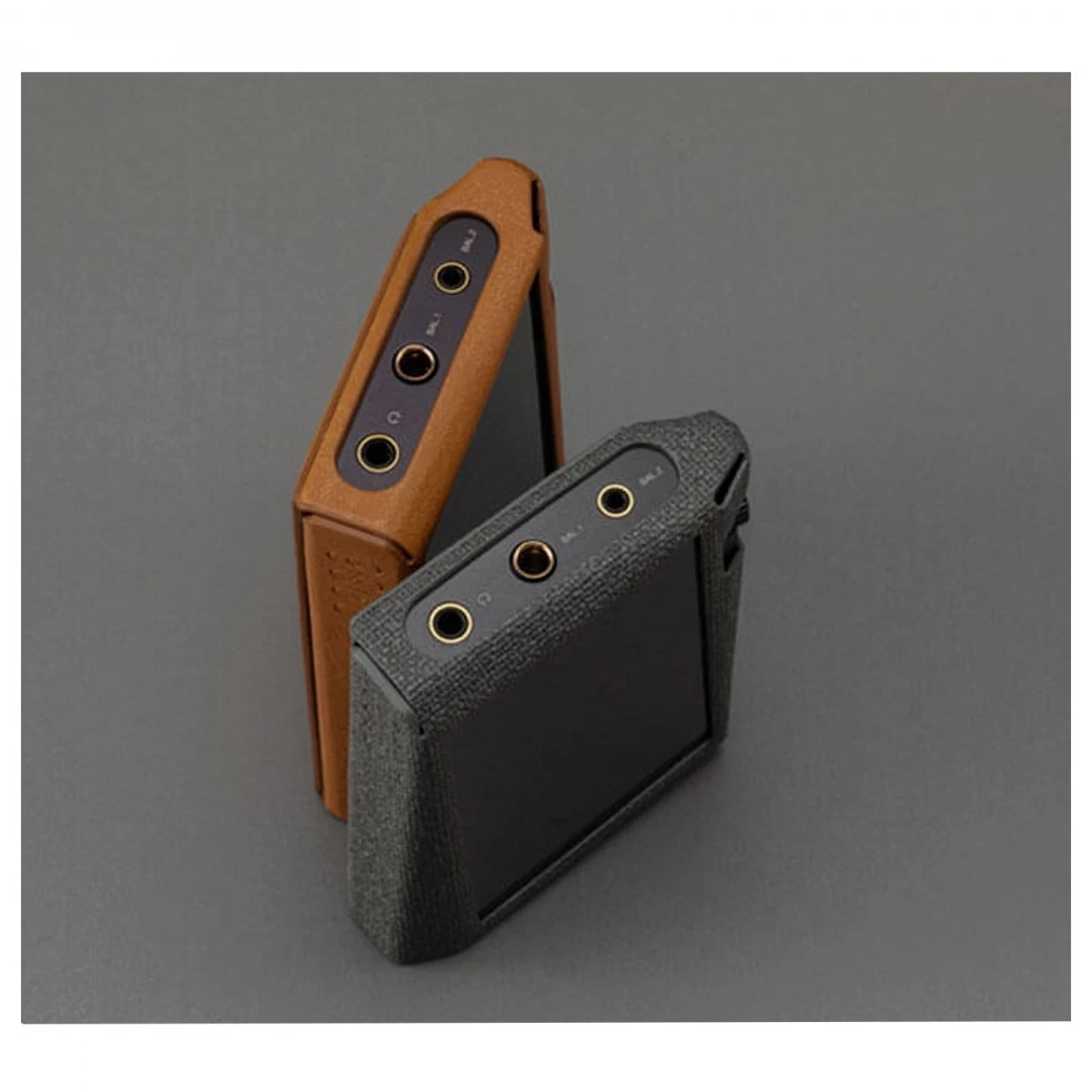

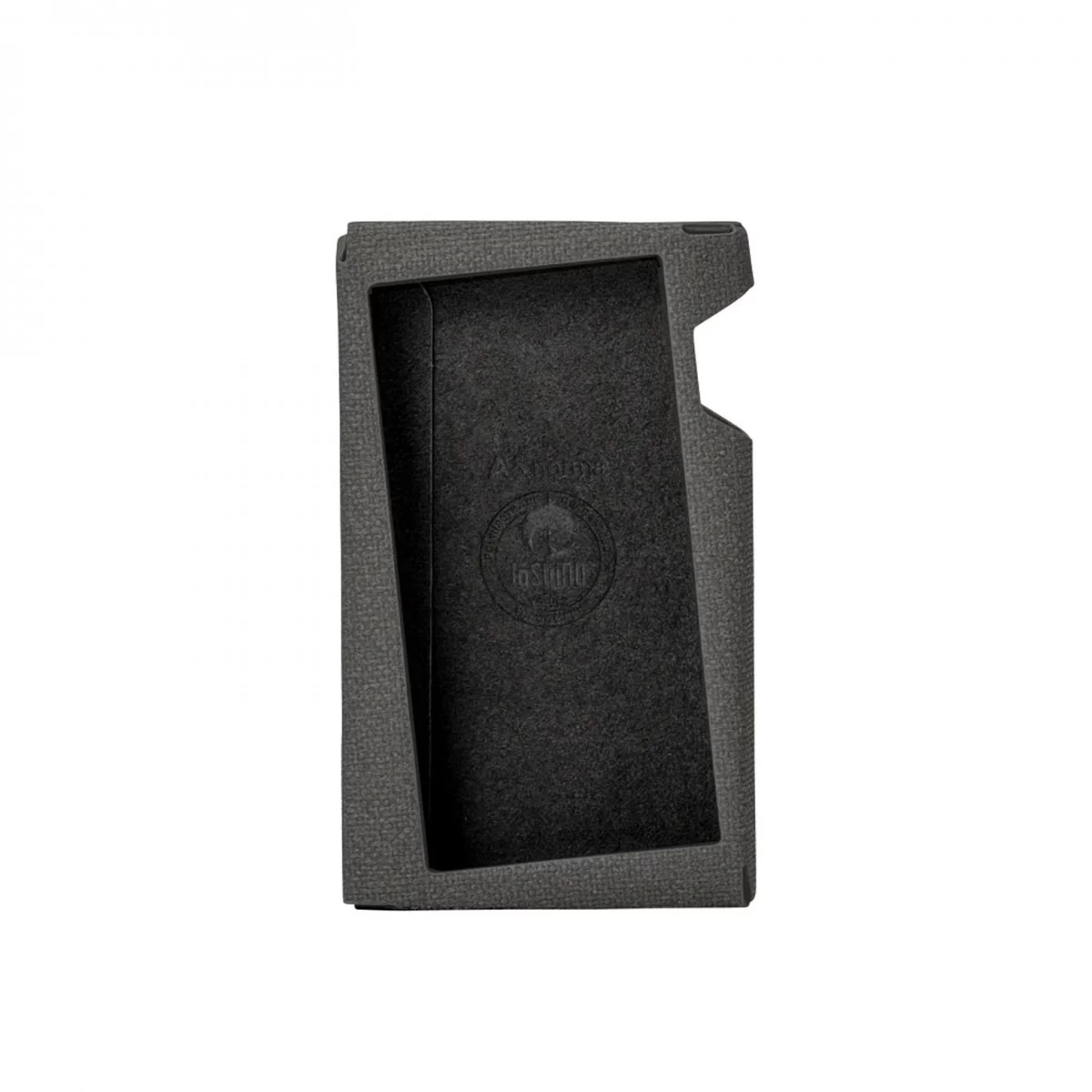

Astell&Kern A&norma SR35 Case, Grey Specifications

General

Model	SR35 Case
Material	Synt3 LASKINA® polyurethane fabric
Colour	(YUTA) Grey
